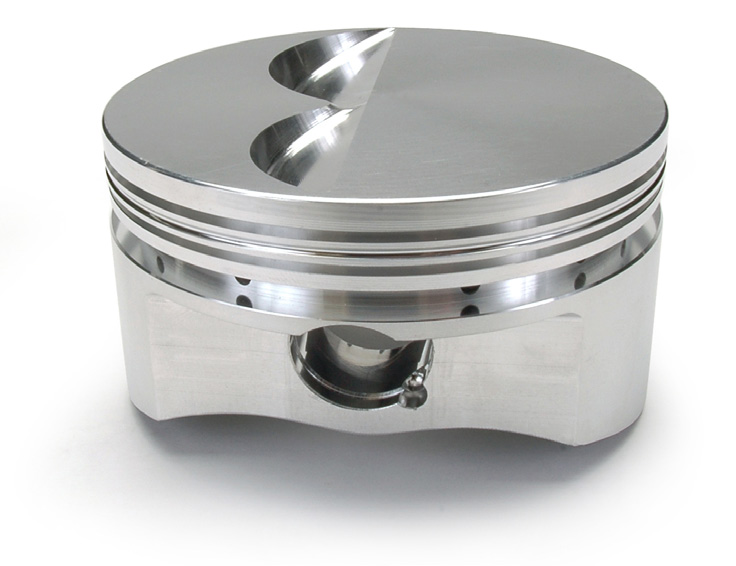

Diamond 11119 Small Block Chevrolet Street / Strip - Flat Top Pistons -5.0cc, 4.060" Bore, 3.625" Stroke, 5.700" Rod, 1.488" CD, .927" x 2.500" Pin
* denotes required field
Select Wrist Pins*
You must select an option for 'Select Wrist Pins'.
* Whole number only
|
Manufacturer: Diamond Racing Products
Part No.: 11119
Compression Ratios
64cc
|
70cc
|
76cc
|
10.8:1
|
10.1:1
|
9.4:1
|
Ratios Figured For .0" Deck at 9.000"
Part Number
|
11119
|
Bore
|
4.060"
|
Stroke
|
3.625"
|
Rod Length
|
5.700"
|
Comp. Height
|
1.488"
|
Wrist Pin
|
.927" x 2.500"
|
Top Ring Down
|
.190"
|
Piston Material
|
4032 Alloy
|
Piston Style
|
Flat Top
|
| Volume
|
-5.0cc
|
Ring Stack
|
1/16" x 1/16" x 3/16"
|
*These Pistons Are None Stocking Items (Made To Order) Please Allow 2-3 Week For Delivery.
Available Options
Recommended Piston Ring Set- 09024060
|
|
|
|
