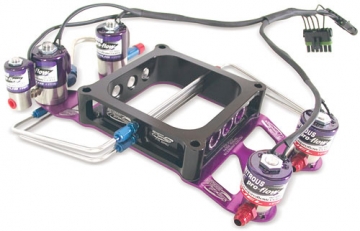

Nitrous Pro Flow 4150 2 Stage Inline Plate System 50 - 600 HP with Burst Panels

<< Previous in 2 Stage Inline Plate Systems

Next in 2 Stage Inline Plate Systems >>

Quantity:

Email this page to a friend

Price: $1,515.00

Manufacturer: Nitrous Pro-Flow

Part No.: 309822

The Nitrous Pro-Flow 2 Stage Inline Bar Systems were developed for use in traction-limited applications.

The plate used in these systems incorporates four stainless steel spray bars with the same Fan Spray Tube Technology used in all of our nitrous plates. In this configuration, the spray bars are arranged in line instead of in a cross-bar arrangement. This allows the power level between the spray bar sets to be staggered (less horsepower on launch) while maintaining excellent distribution characteristics.

The upper bars are used for the first stage and are adjustable from 50-250hp. The lower bars are used as the second stage and are adjustable from 175-350hp.

Systems are assembled using our high flow fuel solenoids, high flow nitrous solenoids, nitrous purge solenoid, patent pending solenoid mounting bracket, and stainless hard lines from the solenoids to the plate. The uniquely designed plate inlet fittings and hard line plumbing significantly enhance metering capabilities by eliminating expansions in the system that can cause a phase change in the nitrous oxide. The nitrous oxide is purged directly from the nitrous solenoid body. This allows the solenoid bowl to be completely filled with liquid nitrous, allowing the liquid to reach the plate faster. Completely plumbed and wired into 6 prong weather pack connectors. Each system is individually flow tested after assembly to insure quality and consistency. Stainless steel jet pack and supporting weather pack connectors are included along with detailed installation and operating instructions.

Complete your system with a 10lb or 15lb Completion Kit (available separately).

Nitrous Pro Flow 4150 2 Stage Inline Plate System 50 - 600 HP with Burst Panels
