Wiseco K548M8525AP - Pistons and Rings for Mitsubishi 4G63 7 Bolt Standard 88mm Stroke, -17cc Dish, 85.25mm Bore

43cc  (2003-2007)	47cc  (1993-2001)
8.5:1	8.3:1

Part Number	K548M8525AP
Bore	85.5mm / 3.356"
Stroke	88mm / 3.465"
Rod Length	150mm / 5.906"
Compression Height	35mm / 1.378"
Dish Volume	-17cc Dish
Wrist Pin Diameter	22mm / .866"
Included Wrist Pins	.200" Wall
Ring Stack	1.0mm x 1.2mm x 2.8mm

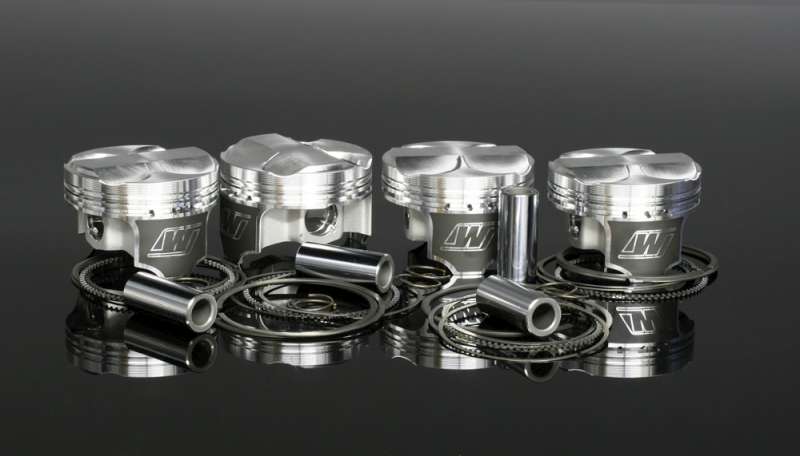

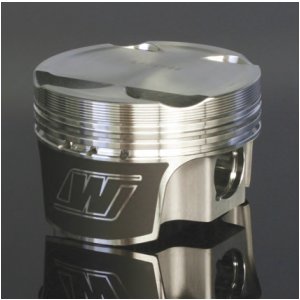

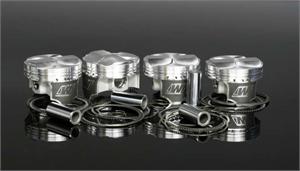

This Wiseco Piston Kit is designed to fit Mitsubishi 4G63 7 Bolt Engines with a 88mm Stroke Crankshaft and 150mm Long Connecting Rods. Included in this kit are .200" Wall Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction and Wiseco's Armour Plating Finishing Process. The Armour Plating drastically strengthens the Piston Material, making it harder the hotter it gets. This helps resist any possible detonation and also helps the Piston Rings from Micro Welding under extreme temperatures.
