Wiseco K548M865AP - Pistons and Rings for Mitsubishi 4G63 7 Bolt Standard 88mm Stroke, -17cc Dish, 86.5mm Bore

<< Previous in 4G63 - 7 Bolt Standard Stroke 2.0L Pistons Next in 4G63 - 7 Bolt Standard Stroke 2.0L Pistons >>

Price: $809.46
Manufacturer: Wiseco
Part No.: K548M865AP
      43cc  (2003-2007)          47cc  (1993-2001)
 8.5:1 8.3:1
  Part Number  K548M865AP
  Bore   86.5mm / 3.405"
  Stroke   88mm / 3.465"
  Rod Length  150mm / 5.906"
  Compression Height
 35mm / 1.378"
  Dish Volume   -17cc Dish
  Wrist Pin Diameter   22mm / .866"
  Included Wrist Pins   .200" Wall
  Ring Stack   1.0mm x 1.2mm x 2.8mm

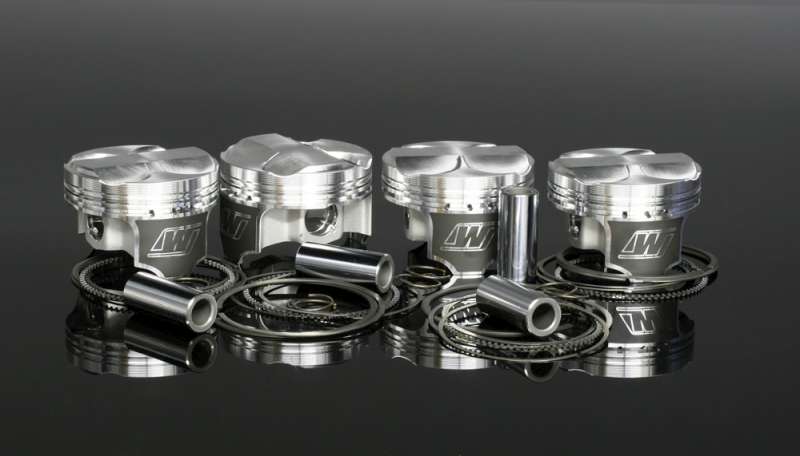

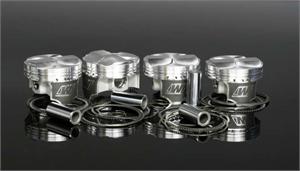

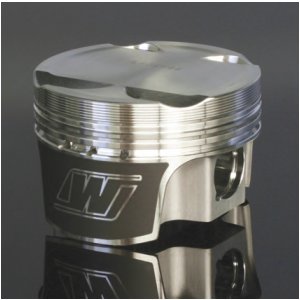

This Wiseco Piston Kit is designed to fit Mitsubishi 4G63 7 Bolt Engines with a 88mm Stroke Crankshaft and 150mm Long Connecting Rods. Included in this kit are .200" Wall Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction and Wiseco's Armour Plating Finishing Process. The Armour Plating drastically strengthens the Piston Material, making it harder the hotter it gets. This helps resist any possible detonation and also helps the Piston Rings from Micro Welding under extreme temperatures.
