Wiseco K560M855 - Pistons and Rings for Mitsubishi 4G63 6 Bolt Standard 88mm Stroke, -10cc Dish, 85.5mm Bore

Part Number	K560M855
Bore	85.5mm / 3.366"
Stroke	88mm / 3.465"
Rod Length	150mm / 5.906"
Compression Height	35mm / 1.378"
Dish Volume	-10cc Dish
Compression Ratio	9.0:1
Wrist Pin Diameter	21mm / .827"
Included Wrist Pins	.200" Wall
Ring Stack	1.0mm x 1.2mm x 2.8mm

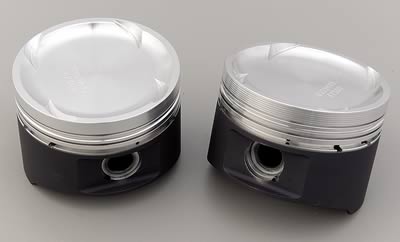

This Wiseco Piston Kit is designed to fit 1G 4G63 6 Bolt Engines with a 88mm Stroke Crankshaft and 150mm Long Connecting Rods. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction. Included in this kit are .200" Wall Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control.
