Wiseco K626M85AP - 1400 HD Pistons and Rings for Mitsubishi 4G63 7 Bolt Standard 88mm Stroke, -14cc Dish, 85mm Bore

Part Number	K626M85AP
Bore	85mm / 3.346"
Stroke	88mm / 3.465"
Rod Length	150mm / 5.906"
Compression Height	35mm / 1.378"
Dish Volume	-14cc Dish
Wrist Pin Diameter	22mm / .866"
Included Wrist Pins	.225" Wall H-13 Tool Steel
Ring Stack	1.0mm x 1.2mm x 2.8mm

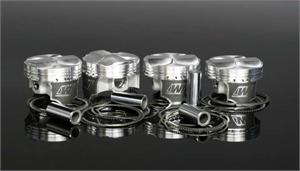

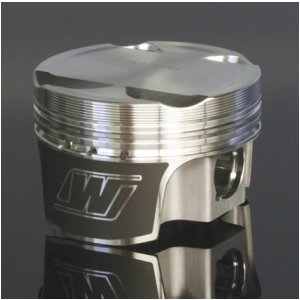

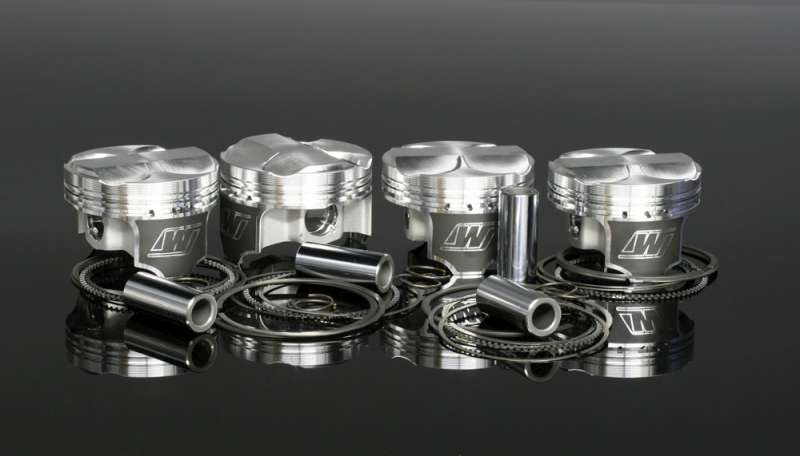

This Wiseco Piston Kit is designed to fit Mitsubishi 4G63 7 Bolt Engines with a 88mm Stroke Crankshaft and 150mm Long Connecting Rods. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction. Included in this kit are Heavy Duty .225" Wall Tool Steel Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction and Wiseco's Armour Plating Finishing Process. The Armour Plating drastically strengthens the Piston Material, making it harder the hotter it gets. This helps resist any possible detonation and also helps the Piston Rings from Micro Welding under extreme temperatures.
