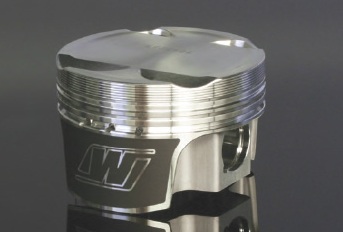

Wiseco K636M86 - Pistons and Rings for Mitsubishi EVO X 4B11T, Standard Stroke, -4.5cc Dish, 86mm Bore

<< Previous in EVO X 4B11T Next in EVO X 4B11T >>

Price: $703.57
Manufacturer: Wiseco
Part No.: K636M86


  Part Number  K636M86
  Bore   86mm / 3.386"
  Stroke   86mm / 3.386"
  Rod Length  143.75mm / 5.659"
  Compression Height
 33.25mm / 1.309"
  Dish Volume   -4.5cc Dish
  Wrist Pin Diameter   23mm / .9055"
  Included Wrist Pins   .200" Wall
  Compression Ratio   9.0:1
  Ring Stack   1.0mm x 1.2mm x 2.8mm

This Piston Kit fits all 2008+ Mitsubishi EVO X 4B11T Engines. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction. Included in this kit are .200" Wall Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. We recommend these pistons for all 4B11T Engine Builds. When it comes down to Quality and Price, Wiseco is a great choice!
