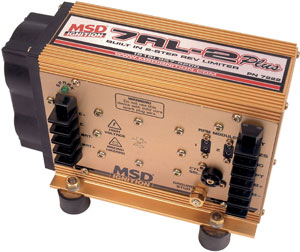

MSD 7AL-2 Ignition Control

The 7AL-2 has been a staple in the drag race community for years. It has now been redesigned with a 40% increase in spark energy! It also features a popular two-step rev control, LEDs for troubleshooting and convenient terminal strips for easy wiring.

Features:
    * Built-in two step rev control
    * Operates on 4, 6 or 8-cylinder engines
    * Troubleshooting LED for spark output diagnostics
    * Terminal strips for improved and easier wiring

Specifications:

Spark Energy:	160 mJ/spark
Primary Voltage:	570 Volts
Secondary Voltage:	47,000 Volts
Spark Series Duration:	20 degree Crankshaft Rotation
RPM Range:	14,000 RPM with 14.4 Volts
Voltage Required:	12-18 Volts, Negative Ground
Current Draw:	6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Weight and Size	4.85 lbs.,8.25"L x 3.75"W x 5.75"H
