Wiseco K667M855AP - Piston and Ring Kit - Mitsubishi EVO 4-9 Asymmetric Skirt 100mm Stroke, 150mm Rod, -17.7cc Dish, 85.5mm Bore

Part Number	K667M855AP
Bore	85.5mm / 3.366"
Stroke	88mm/ 3.465
Rod Length	150mm / 5.906"
Compression Height	28.875mm / 1.137"
Dish Volume	-17.7cc Dish
Wrist Pin Diameter	22mm / .866"
Included Wrist Pins	.200" Wall
Ring Stack	1.0mm x 1.2mm x 2.8mm

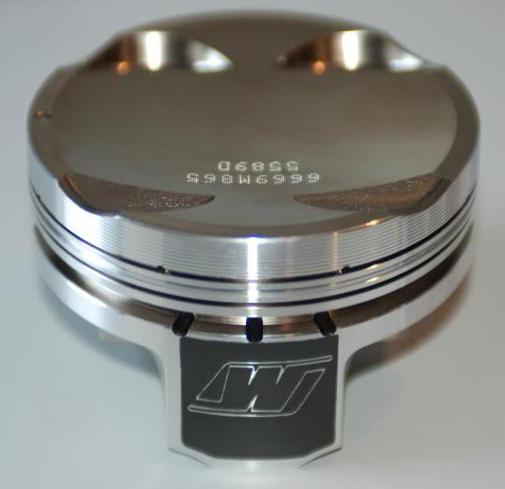

This Wiseco Piston Kit features the all new HD2 / Asymmetric Skirt Forging. This is the strongest forging available for the 4G63 Engines. The Asymmetric Skirt has a standard skirt width on the thrust side, but a much smaller skirt width on the non-thrust side. This allows extra material to be added where it is needed, without adding weight. These Pistons will fit both EVO and DSM 2G 7 Bolt Engines with a 100mm Stroke Crankshaft and 150mm Standard Length Rod. Included in this kit are .200" Wall Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction and Wiseco's Armour Plating Finishing Process. The Armour Plating drastically strengthens the Piston Material, making it harder the hotter it gets. This helps resist any possible detonation and also helps the Piston Rings from Micro Welding under extreme temperatures.
